You are checking the master branch (development) documentation. You should use https://docs.frrouting.org/en/stable-10.0/bmp.html. On Tue, Jul 23, 2024 at 3:08 PM Boris Hassanov via dev < dev@lists.frrouting.org> wrote:
---------- Forwarded message ---------- From: Boris Hassanov <bhassanov@yahoo.com> To: "dev@lists.frrouting.org" <dev@lists.frrouting.org> Cc: Bcc: Date: Mon, 17 Jun 2024 17:12:18 +0000 (UTC) Subject: BMP Issue in FRR 10.0 Hi all,
During the testing I found strange BMP issue. RFC 7854 describes several types of BMP messages, one of them is Stats Report ( https://www.rfc-editor.org/rfc/rfc7854#page-13).
The FRR documentation (. https://docs.frrouting.org/en/latest/bmp.html#bmp-session-configuration ) explicitly says: "
-
the following statistics codes are implemented: -
0: count of prefixes rejected -
2: count of duplicate prefix withdrawals -
3: count of prefixes with loop in cluster id -
4: count of prefixes with loop in AS-path -
5: count of prefixes with loop in originator -
7: count of routes in adj-rib-in -
8: count of routes in Loc-RIB -
11: count of updates subjected to RFC 7607 <https://datatracker.ietf.org/doc/html/rfc7607.html> “treat as withdrawal” handling due to errors -
65531: *experimental* count of prefixes rejected due to invalid next-hop
Note that stat items 3, 4 and 5 are specified to count updates, but FRR implements them as prefix-based counters.
" The issue is that I do not see Stats Types 7 and 8 in the BMP message from FRR towards BMP collector (goBMP in my test setup):

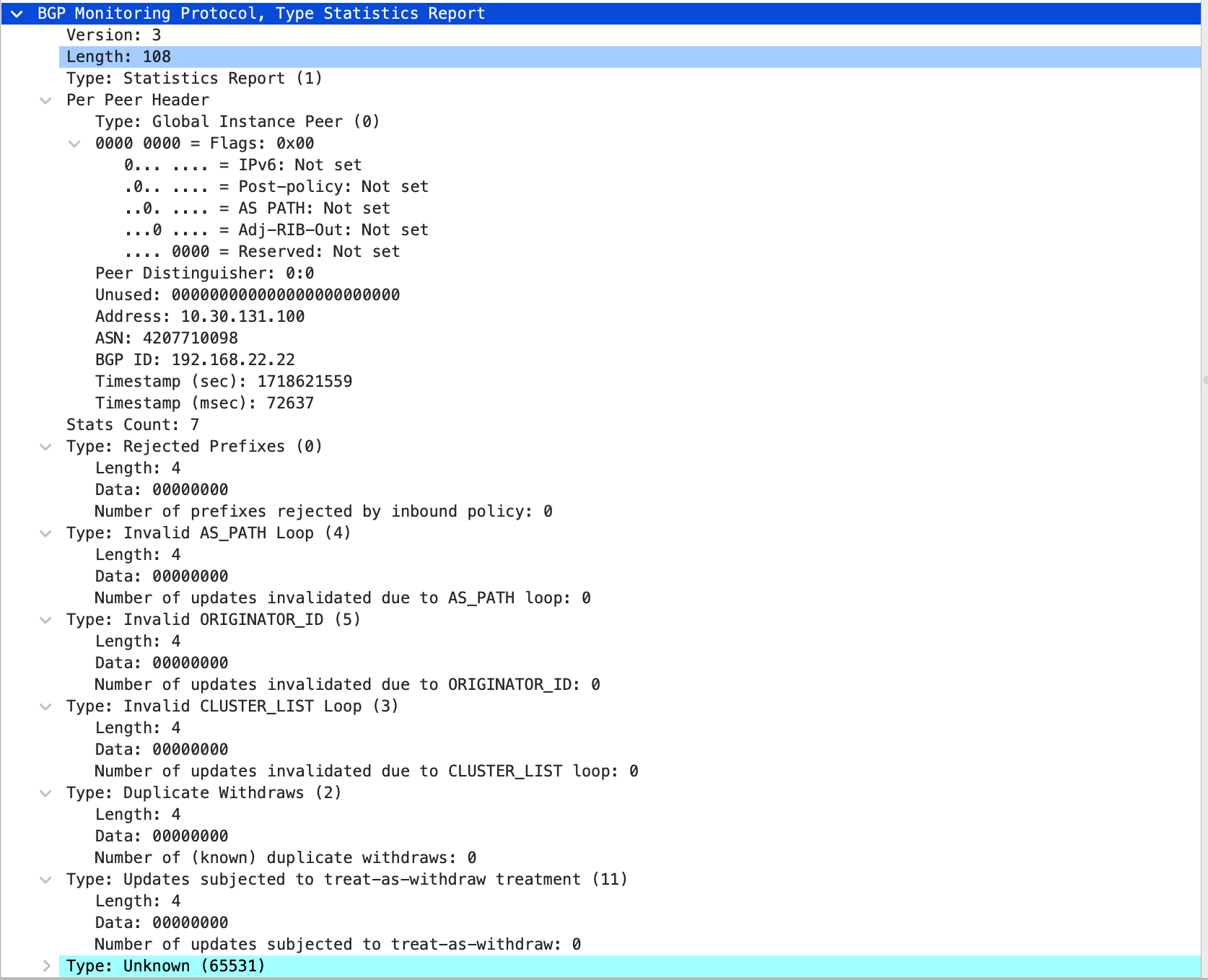

[image: Inline image]
There are only 7 statistic types and no statistic codes 7 and 8.
Is this a bug or I missed something in BMP config ?
Here is the BMP config oof the FRR for the reference:
bmp targets ubuntu-BMP
bmp stats interval 300
bmp monitor ipv4 unicast pre-policy
bmp monitor ipv4 unicast loc-rib
bmp connect 10.30.131.101 port 5050 min-retry 30000 max-retry 3000 source-interface eth2
exit
FRR1# sh ver
FRRouting 10.0_git (FRR1) on Linux(5.15.0-102-generic).
Thank you in advance for the clarification.
SY, Boris
---------- Forwarded message ---------- From: Boris Hassanov via dev <dev@lists.frrouting.org> To: "dev@lists.frrouting.org" <dev@lists.frrouting.org> Cc: Bcc: Date: Mon, 17 Jun 2024 17:12:18 +0000 (UTC) Subject: [dev] BMP Issue in FRR 10.0 _______________________________________________ dev mailing list dev@lists.frrouting.org https://lists.frrouting.org/listinfo/dev
-- Donatas
Hi Donatas, Thank you. So what is the roadmap for a support of Stats type 7 and 8? SY, Boris On Tuesday, July 23, 2024 at 03:13:31 PM GMT+3, Donatas Abraitis <donatas.abraitis@gmail.com> wrote: You are checking the master branch (development) documentation. You should use https://docs.frrouting.org/en/stable-10.0/bmp.html. On Tue, Jul 23, 2024 at 3:08 PM Boris Hassanov via dev <dev@lists.frrouting.org> wrote:
---------- Forwarded message ---------- From: Boris Hassanov <bhassanov@yahoo.com> To: "dev@lists.frrouting.org" <dev@lists.frrouting.org> Cc: Bcc: Date: Mon, 17 Jun 2024 17:12:18 +0000 (UTC) Subject: BMP Issue in FRR 10.0 Hi all,
During the testing I found strange BMP issue. RFC 7854 describes several types of BMP messages, one of them is Stats Report (https://www.rfc-editor.org/rfc/rfc7854#page-13).
The FRR documentation (.https://docs.frrouting.org/en/latest/bmp.html#bmp-session-configuration ) explicitly says: " * the following statistics codes are implemented: * 0: count of prefixes rejected * 2: count of duplicate prefix withdrawals * 3: count of prefixes with loop in cluster id * 4: count of prefixes with loop in AS-path * 5: count of prefixes with loop in originator * 7: count of routes in adj-rib-in * 8: count of routes in Loc-RIB * 11: count of updates subjected to RFC 7607 “treat as withdrawal” handling due to errors * 65531: experimental count of prefixes rejected due to invalid next-hop Note that stat items 3, 4 and 5 are specified to count updates, but FRR implements them as prefix-based counters. " The issue is that I do not see Stats Types 7 and 8 in the BMP message from FRR towards BMP collector (goBMP in my test setup):
There are only 7 statistic types and no statistic codes 7 and 8.
Is this a bug or I missed something in BMP config ?
Here is the BMP config oof the FRR for the reference:
bmp targets ubuntu-BMP bmp stats interval 300 bmp monitor ipv4 unicast pre-policy bmp monitor ipv4 unicast loc-rib bmp connect 10.30.131.101 port 5050 min-retry 30000 max-retry 3000 source-interface eth2 exit
FRR1# sh ver FRRouting 10.0_git (FRR1) on Linux(5.15.0-102-generic).
Thank you in advance for the clarification.
SY, Boris
---------- Forwarded message ---------- From: Boris Hassanov via dev <dev@lists.frrouting.org> To: "dev@lists.frrouting.org" <dev@lists.frrouting.org> Cc: Bcc: Date: Mon, 17 Jun 2024 17:12:18 +0000 (UTC) Subject: [dev] BMP Issue in FRR 10.0 _______________________________________________ dev mailing list dev@lists.frrouting.org https://lists.frrouting.org/listinfo/dev
-- Donatas
