BMP Issue in FRR 10.0

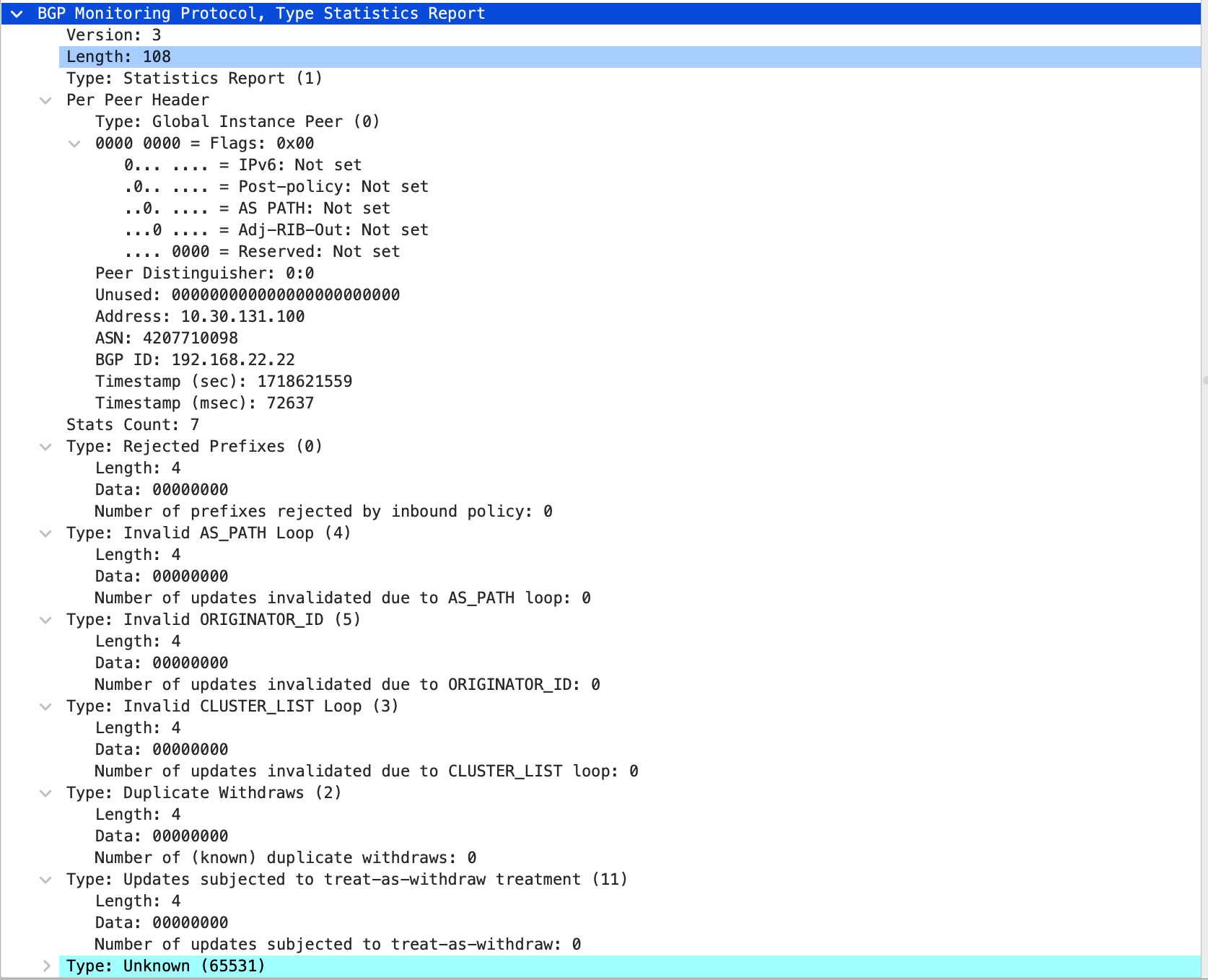

Hi all, During the testing I found strange BMP issue. RFC 7854 describes several types of BMP messages, one of them is Stats Report (https://www.rfc-editor.org/rfc/rfc7854#page-13). The FRR documentation (.https://docs.frrouting.org/en/latest/bmp.html#bmp-session-configuration ) explicitly says:" - the following statistics codes are implemented: - 0: count of prefixes rejected - 2: count of duplicate prefix withdrawals - 3: count of prefixes with loop in cluster id - 4: count of prefixes with loop in AS-path - 5: count of prefixes with loop in originator - 7: count of routes in adj-rib-in - 8: count of routes in Loc-RIB - 11: count of updates subjected to RFC 7607 “treat as withdrawal” handling due to errors - 65531: experimental count of prefixes rejected due to invalid next-hop Note that stat items 3, 4 and 5 are specified to count updates, but FRR implements them as prefix-based counters. "The issue is that I do not see Stats Types 7 and 8 in the BMP message from FRR towards BMP collector (goBMP in my test setup): There are only 7 statistic types and no statistic codes 7 and 8. Is this a bug or I missed something in BMP config ? Here is the BMP config oof the FRR for the reference: bmp targets ubuntu-BMP bmp stats interval 300 bmp monitor ipv4 unicast pre-policy bmp monitor ipv4 unicast loc-rib bmp connect 10.30.131.101 port 5050 min-retry 30000 max-retry 3000 source-interface eth2 exit FRR1# sh ver FRRouting 10.0_git (FRR1) on Linux(5.15.0-102-generic). Thank you in advance for the clarification. SY,Boris
participants (1)
-
Boris Hassanov
