[dev] Reg: FRR PBR Configuration

[valli rama]

Hi Donald

Please find the below is the ip rule show output

sudo ip rule show
0: from all lookup local
300: from 192.168.59.10/24 to 192.168.56.10/24 iif enp0s3 lookup 10000
301: from 192.168.55.10/24 to 192.168.54.11/24 iif enp0s3 lookup 10000
32766: from all lookup main
32767: from all lookup default

sudo ip route ls table 10000
default via 192.168.58.11 dev enp0s9  proto 195  metric 20


Thanks,
Valli


On Mon, 3 Dec 2018 at 19:32, Donald Sharp <sharpd at cumulusnetworks.com>
wrote:

> Can we get the output of `ip rule show` from the linux cli?
>
> On Mon, Dec 3, 2018 at 8:36 AM valli rama <pvallirama at gmail.com> wrote:
>
>> Hi,
>>
>> We have the below setup with RIP and PBR configurations
>>
>>
>> [image: image.png]
>>
>> We have RIP default learned for 192.168.57.0 and we are trying to install
>> the PBR Policeis with the Next-hop 192.168.58.0 (other than the default one)
>>

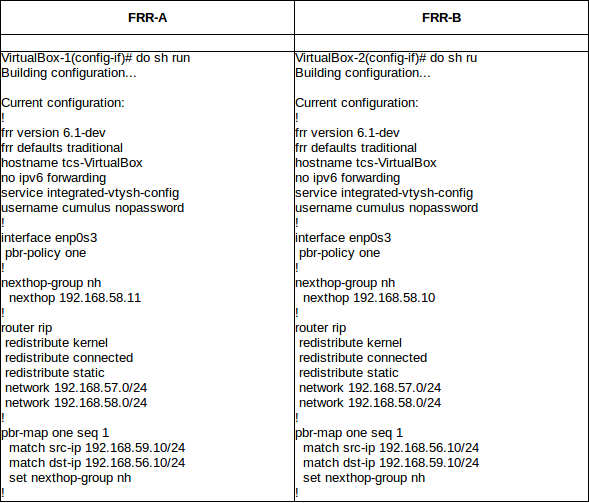

>> Step -1 First we are trying to install the PBR Policy “One” with Sequance
>> Number “1” and binded it to an interface on both the FRRouters A and B
>>
>> [image: image.png]
>>
>> Step -2 And we observed that the Traffic is redirected to the Nexhop
>> given in the policy. Which is working Fine.
>>
>> Step -3 Now we are trying to update and re-install the PBR Policy “One”
>> with Sequance Number “2” and bound it to the same interface on both the
>> FRRouters A and B
>>
>>
>> [image: image.png]
>> [image: image.png]
>>
>> Step-4 We observed that the Traffic is NOT redirected to the Nexhop for
>> Policy with Sequance Number “2”.
>>
>> As per my understanding both the Policies Seq “1” and “2” are belongs to
>> same Policy-Map and Binded to the Interface and Both should work as per the
>> Policy Rules... But Rule with Sequance Number “1” is working as per the
>> Policy Rule But Rule with Sequance Number “2” is not working.
>>
>> Could you please guide me whether I’m missing any configuration steps
>> that should be considered for getting the above stuff working.
>>
>> And could you please let me know how to check the corresponding insalled
>> iptable entry in the linux kernel for the configured FRR PBR policy.
>>
>>
>> Thanks and Regards,
>>
>> Valli
>> _______________________________________________
>> dev mailing list
>> dev at lists.frrouting.org
>> https://lists.frrouting.org/listinfo/dev
>>
>
