[FROG] Multicast Protocol

Wed Oct 24 09:07:37 EDT 2018

The `show ip multicast` command is showing that pim does not think vpp0 or
vpp1 have an ip address or an associated VIFI in the linux kernel.   I
would recommend trying this again:

conf t
interface vpp0
  no ip pim sm
  ip pim sm
!

interface vpp1
  no ip igmp join 224.1.1.1 3.3.3.4
  no ip pim sm
  ip pim sm
  ip igmp join 224.1.1.1 3.3.3.4
!

Then let's re-issue a `show ip multicast` and see if those interfaces are
now configured under pim.  If not we can discuss debugging.

I would also recommend joining the FRRouting slack for a real-time
debugging ability.

donald

On Wed, Oct 24, 2018 at 8:17 AM Tamar Cohen <tamar_c at rad.com> wrote:

> Hi Donald and thank you!!!!
>

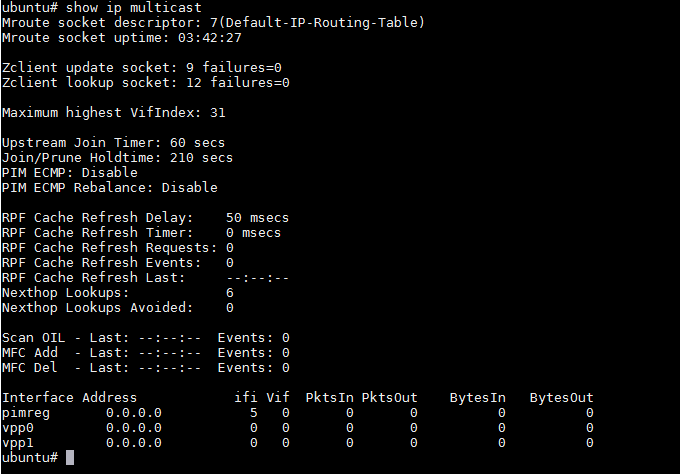

> Show ip multicast:
>
>
>
> Show ip pim rp-info
>
> Show running-config:
>
>
>
> What I miss?
>
>
>
> Thank you!!!!
>
> *From:* Donald Sharp [mailto:sharpd at cumulusnetworks.com]
> *Sent:* Wednesday, October 24, 2018 14:41
> *To:* Tamar Cohen <tamar_c at rad.com>
> *Cc:* FRRouting-Dev <dev at lists.frrouting.org>; frog <
> frog at lists.frrouting.org>; Arik Peretz <arik_p at rad.com>
> *Subject:* Re: [FROG] Multicast Protocol
>
>
>
> 1) PIM-SM works, we are going to need a bit more data, can we get the
> output of `show ip multicast` and `show ip pim rp-info` as a start?
>
>
>
> 2) `terminal monitor` is currently only meant for when you telnet into a
> particular daemon.  There is no good way to have asynchronous logging data
> between all the daemons be sent to the vtysh process for what you are
> trying to do.  I would suggest using a `log file XXX` and in another window
> tail'ing that file.  I have also been known to turn on debugging, watching
> the log file via a `tail -f XXXX &` and then invoking vtysh to see output
> as I do work.
>
>
>
> 3) this is the same question as #1, so yes.
>
>
>
> donald
>
>
>
> On Wed, Oct 24, 2018 at 7:34 AM Tamar Cohen <tamar_c at rad.com> wrote:
>
> Hi all,
>
> My name is Tamar and I have the release 5.0.1 of the FRRouting, it is an
> excellent  IP routing protocol suite!
>
> I try to use frr in multicast traffic.
>
> 1)      Is frr support multicast traffic? (I ask because I tried without
> success)
>
> I write this commands:
>
> ip multicast
>
> ip pim rp IP ADDR
>
> inteface INTERFACE
>
> ip pim sm\\ in all interfaces
>
>
>
>                 Also I add an ospf:
>
>                                 router ospf 1
>
> network 0.0.0.0 0.0.0.0 area 0
>
>                 my setup include tow PC and one additional router (VM of
> cisco)
>
>                 This setup does not foreword a multicast traffic
> unfortunately …
>
> 2)      I try to debug the traffic in the frr with the “debug” commands
> but it does not print to the screen anything.
>
> In the manual
>
> When I wrote the command I got
>
> Why?
>
> 3)      Is the frr support pim protocol?
> It is written in the manual but not work in my setup
>
>
>
> I would be very grateful if you could help me with this.
>
> Thank you!
>
> Tamar
>
>
>
>
>
