[FROG] Multicast Protocol

Tamar Cohen tamar_c at rad.com
Thu Oct 25 02:55:39 EDT 2018


Hi Donald and thank you so match!!

Unfortunately  it is not help me
Here is the screenshot:
[cid:image001.png at 01D46C48.E10BF790]

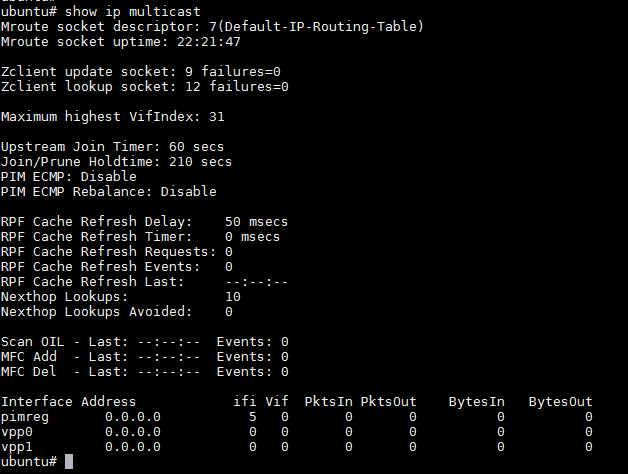

And after that the  show ip multicast:
[cid:image002.png at 01D46C48.E10BF790]



Who do I joining the FRRouting slack?
Thank you!
Tamar


From: Donald Sharp [mailto:sharpd at cumulusnetworks.com]
Sent: Wednesday, October 24, 2018 16:08
To: Tamar Cohen <tamar_c at rad.com>
Cc: FRRouting-Dev <dev at lists.frrouting.org>; frog <frog at lists.frrouting.org>; Arik Peretz <arik_p at rad.com>
Subject: Re: [FROG] Multicast Protocol

The `show ip multicast` command is showing that pim does not think vpp0 or vpp1 have an ip address or an associated VIFI in the linux kernel.   I would recommend trying this again:

conf t
interface vpp0
  no ip pim sm
  ip pim sm
!

interface vpp1
  no ip igmp join 224.1.1.1 3.3.3.4
  no ip pim sm
  ip pim sm
  ip igmp join 224.1.1.1 3.3.3.4
!

Then let's re-issue a `show ip multicast` and see if those interfaces are now configured under pim.  If not we can discuss debugging.

I would also recommend joining the FRRouting slack for a real-time debugging ability.

donald


On Wed, Oct 24, 2018 at 8:17 AM Tamar Cohen <tamar_c at rad.com<mailto:tamar_c at rad.com>> wrote:
Hi Donald and thank you!!!!
Show ip multicast:
[cid:image001.png at 01D46BAC.425969D0]

Show ip pim rp-info
[cid:image002.png at 01D46BAC.AD5F5500]
Show running-config:
[cid:image003.png at 01D46BAC.AD5F5500]

What I miss?

Thank you!!!!
From: Donald Sharp [mailto:sharpd at cumulusnetworks.com<mailto:sharpd at cumulusnetworks.com>]
Sent: Wednesday, October 24, 2018 14:41
To: Tamar Cohen <tamar_c at rad.com<mailto:tamar_c at rad.com>>
Cc: FRRouting-Dev <dev at lists.frrouting.org<mailto:dev at lists.frrouting.org>>; frog <frog at lists.frrouting.org<mailto:frog at lists.frrouting.org>>; Arik Peretz <arik_p at rad.com<mailto:arik_p at rad.com>>
Subject: Re: [FROG] Multicast Protocol

1) PIM-SM works, we are going to need a bit more data, can we get the output of `show ip multicast` and `show ip pim rp-info` as a start?

2) `terminal monitor` is currently only meant for when you telnet into a particular daemon.  There is no good way to have asynchronous logging data between all the daemons be sent to the vtysh process for what you are trying to do.  I would suggest using a `log file XXX` and in another window tail'ing that file.  I have also been known to turn on debugging, watching the log file via a `tail -f XXXX &` and then invoking vtysh to see output as I do work.

3) this is the same question as #1, so yes.

donald

On Wed, Oct 24, 2018 at 7:34 AM Tamar Cohen <tamar_c at rad.com<mailto:tamar_c at rad.com>> wrote:
Hi all,
My name is Tamar and I have the release 5.0.1 of the FRRouting, it is an excellent  IP routing protocol suite!
I try to use frr in multicast traffic.

1)      Is frr support multicast traffic? (I ask because I tried without success)

I write this commands:

ip multicast

ip pim rp IP ADDR

inteface INTERFACE

ip pim sm\\ in all interfaces

                Also I add an ospf:
                                router ospf 1
network 0.0.0.0 0.0.0.0 area 0
                my setup include tow PC and one additional router (VM of cisco)
                This setup does not foreword a multicast traffic unfortunately …

2)      I try to debug the traffic in the frr with the “debug” commands but it does not print to the screen anything.

In the manual

When I wrote the command I got

Why?

3)      Is the frr support pim protocol?
It is written in the manual but not work in my setup

I would be very grateful if you could help me with this.
Thank you!
Tamar



Tamar Cohen
NFV SW Engineer
T: +972-73-270-7625
F: +972-08-6436791 | tamar_c at rad.com<mailto:tamar_c at rad.com>

www.rad.com<https://emea01.safelinks.protection.outlook.com/?url=http%3A%2F%2Fwww.rad.com%2F&data=01%7C01%7Ctamar_c%40rad.com%7Cec5663b2638b4c703d0c08d639b1b381%7Cf9047108cc2c4e4897a343fad1b3bf9d%7C1&sdata=ypPv6L7oeyJYXMOtg1FZ06MxJQHmuAcWP8u2%2BVWvHgs%3D&reserved=0>  |  Follow RAD on LinkedIn<https://emea01.safelinks.protection.outlook.com/?url=http%3A%2F%2Fwww.linkedin.com%2Fcompany%2F7369%2F&data=01%7C01%7Ctamar_c%40rad.com%7Cec5663b2638b4c703d0c08d639b1b381%7Cf9047108cc2c4e4897a343fad1b3bf9d%7C1&sdata=nJOVUet9%2FtGnaOThM5v%2FlBYf7oc8HzD1XrMD10FOi3k%3D&reserved=0>  |  Facebook<https://emea01.safelinks.protection.outlook.com/?url=http%3A%2F%2Fwww.facebook.com%2Fpages%2FRAD-Data-Communications%2F72479223117&data=01%7C01%7Ctamar_c%40rad.com%7Cec5663b2638b4c703d0c08d639b1b381%7Cf9047108cc2c4e4897a343fad1b3bf9d%7C1&sdata=SFcMKxivdpSgP0qc9xEhCxbsd%2FcZdGMEwTiXml67n3E%3D&reserved=0>  |  Twitter<https://emea01.safelinks.protection.outlook.com/?url=http%3A%2F%2Ftwitter.com%2Fraddatacomms&data=01%7C01%7Ctamar_c%40rad.com%7Cec5663b2638b4c703d0c08d639b1b381%7Cf9047108cc2c4e4897a343fad1b3bf9d%7C1&sdata=80r2Ko6fCuPCZP5r%2FHcOr1Opl%2FvMBNWvfRrtGsaAN1I%3D&reserved=0>  |  YouTube<https://emea01.safelinks.protection.outlook.com/?url=http%3A%2F%2Fwww.youtube.com%2Fuser%2Fradwebmaster%23g%2Fu&data=01%7C01%7Ctamar_c%40rad.com%7Cec5663b2638b4c703d0c08d639b1b381%7Cf9047108cc2c4e4897a343fad1b3bf9d%7C1&sdata=rJWIsgFVfK3tOGn%2By%2BySzcO8t96ENNJ3rMtCafHhLt8%3D&reserved=0>
