[FROG] Multicast Protocol

Donald Sharp sharpd at cumulusnetworks.com
Thu Oct 25 06:17:07 EDT 2018


Are the interfaces up?

`show interface`?

No ip address sure implies that they are not up.

donald

On Thu, Oct 25, 2018 at 2:55 AM Tamar Cohen <tamar_c at rad.com> wrote:

> Hi Donald and thank you so match!!
>
>
>
> Unfortunately  it is not help me
>

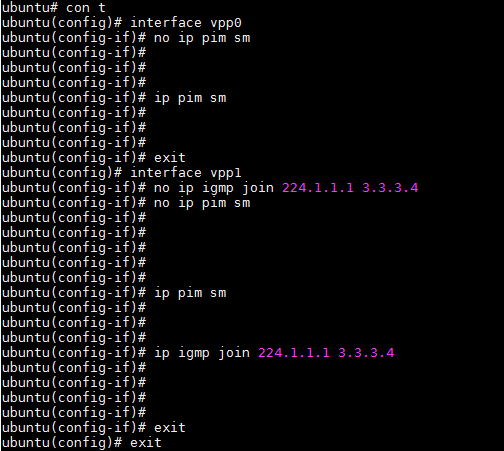

> Here is the screenshot:
>
>
>

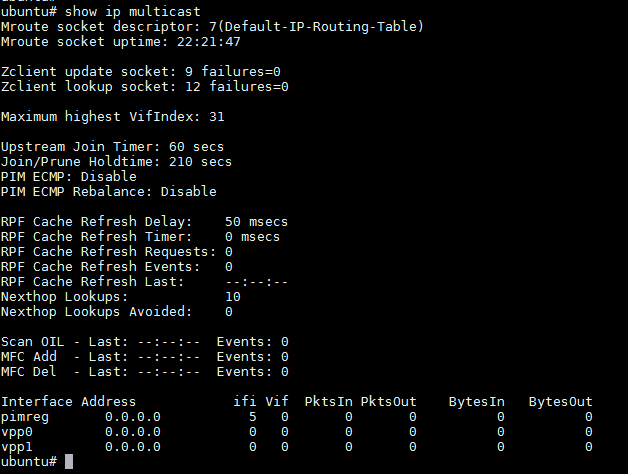

> And after that the  show ip multicast:
>
>
>
>
>
>
>
> Who do I joining the FRRouting slack?
>
> Thank you!
>
> Tamar
>
>
>
>
>
> *From:* Donald Sharp [mailto:sharpd at cumulusnetworks.com]
> *Sent:* Wednesday, October 24, 2018 16:08
> *To:* Tamar Cohen <tamar_c at rad.com>
> *Cc:* FRRouting-Dev <dev at lists.frrouting.org>; frog <
> frog at lists.frrouting.org>; Arik Peretz <arik_p at rad.com>
> *Subject:* Re: [FROG] Multicast Protocol
>
>
>
> The `show ip multicast` command is showing that pim does not think vpp0 or
> vpp1 have an ip address or an associated VIFI in the linux kernel.   I
> would recommend trying this again:
>
>
>
> conf t
>
> interface vpp0
>
>   no ip pim sm
>
>   ip pim sm
>
> !
>
>
>
> interface vpp1
>
>   no ip igmp join 224.1.1.1 3.3.3.4
>
>   no ip pim sm
>
>   ip pim sm
>
>   ip igmp join 224.1.1.1 3.3.3.4
>
> !
>
>
>
> Then let's re-issue a `show ip multicast` and see if those interfaces are
> now configured under pim.  If not we can discuss debugging.
>
>
>
> I would also recommend joining the FRRouting slack for a real-time
> debugging ability.
>
>
>
> donald
>
>
>
>
>
> On Wed, Oct 24, 2018 at 8:17 AM Tamar Cohen <tamar_c at rad.com> wrote:
>
> Hi Donald and thank you!!!!
>
> Show ip multicast:
>
>
>
> Show ip pim rp-info
>
> Show running-config:
>
>
>
> What I miss?
>
>
>
> Thank you!!!!
>
> *From:* Donald Sharp [mailto:sharpd at cumulusnetworks.com]
> *Sent:* Wednesday, October 24, 2018 14:41
> *To:* Tamar Cohen <tamar_c at rad.com>
> *Cc:* FRRouting-Dev <dev at lists.frrouting.org>; frog <
> frog at lists.frrouting.org>; Arik Peretz <arik_p at rad.com>
> *Subject:* Re: [FROG] Multicast Protocol
>
>
>
> 1) PIM-SM works, we are going to need a bit more data, can we get the
> output of `show ip multicast` and `show ip pim rp-info` as a start?
>
>
>
> 2) `terminal monitor` is currently only meant for when you telnet into a
> particular daemon.  There is no good way to have asynchronous logging data
> between all the daemons be sent to the vtysh process for what you are
> trying to do.  I would suggest using a `log file XXX` and in another window
> tail'ing that file.  I have also been known to turn on debugging, watching
> the log file via a `tail -f XXXX &` and then invoking vtysh to see output
> as I do work.
>
>
>
> 3) this is the same question as #1, so yes.
>
>
>
> donald
>
>
>
> On Wed, Oct 24, 2018 at 7:34 AM Tamar Cohen <tamar_c at rad.com> wrote:
>
> Hi all,
>
> My name is Tamar and I have the release 5.0.1 of the FRRouting, it is an
> excellent  IP routing protocol suite!
>
> I try to use frr in multicast traffic.
>
> 1)      Is frr support multicast traffic? (I ask because I tried without
> success)
>
> I write this commands:
>
> ip multicast
>
> ip pim rp IP ADDR
>
> inteface INTERFACE
>
> ip pim sm\\ in all interfaces
>
>
>
>                 Also I add an ospf:
>
>                                 router ospf 1
>
> network 0.0.0.0 0.0.0.0 area 0
>
>                 my setup include tow PC and one additional router (VM of
> cisco)
>
>                 This setup does not foreword a multicast traffic
> unfortunately …
>
> 2)      I try to debug the traffic in the frr with the “debug” commands
> but it does not print to the screen anything.
>
> In the manual
>
> When I wrote the command I got
>
> Why?
>
> 3)      Is the frr support pim protocol?
> It is written in the manual but not work in my setup
>
>
>
> I would be very grateful if you could help me with this.
>
> Thank you!
>
> Tamar
>
>
>
>
>
> *Tamar Cohen*
>
> NFV SW Engineer
>
> T: +972-73-270-7625
>
> F: +972-08-6436791 | *tamar_c at rad.com <tamar_c at rad.com>*
>
> www.rad.com
> <https://emea01.safelinks.protection.outlook.com/?url=http%3A%2F%2Fwww.rad.com%2F&data=01%7C01%7Ctamar_c%40rad.com%7Cec5663b2638b4c703d0c08d639b1b381%7Cf9047108cc2c4e4897a343fad1b3bf9d%7C1&sdata=ypPv6L7oeyJYXMOtg1FZ06MxJQHmuAcWP8u2%2BVWvHgs%3D&reserved=0>
>   |  Follow RAD on LinkedIn
> <https://emea01.safelinks.protection.outlook.com/?url=http%3A%2F%2Fwww.linkedin.com%2Fcompany%2F7369%2F&data=01%7C01%7Ctamar_c%40rad.com%7Cec5663b2638b4c703d0c08d639b1b381%7Cf9047108cc2c4e4897a343fad1b3bf9d%7C1&sdata=nJOVUet9%2FtGnaOThM5v%2FlBYf7oc8HzD1XrMD10FOi3k%3D&reserved=0>  |
>  Facebook
> <https://emea01.safelinks.protection.outlook.com/?url=http%3A%2F%2Fwww.facebook.com%2Fpages%2FRAD-Data-Communications%2F72479223117&data=01%7C01%7Ctamar_c%40rad.com%7Cec5663b2638b4c703d0c08d639b1b381%7Cf9047108cc2c4e4897a343fad1b3bf9d%7C1&sdata=SFcMKxivdpSgP0qc9xEhCxbsd%2FcZdGMEwTiXml67n3E%3D&reserved=0>
>  |  Twitter
> <https://emea01.safelinks.protection.outlook.com/?url=http%3A%2F%2Ftwitter.com%2Fraddatacomms&data=01%7C01%7Ctamar_c%40rad.com%7Cec5663b2638b4c703d0c08d639b1b381%7Cf9047108cc2c4e4897a343fad1b3bf9d%7C1&sdata=80r2Ko6fCuPCZP5r%2FHcOr1Opl%2FvMBNWvfRrtGsaAN1I%3D&reserved=0>  |
>  YouTube
> <https://emea01.safelinks.protection.outlook.com/?url=http%3A%2F%2Fwww.youtube.com%2Fuser%2Fradwebmaster%23g%2Fu&data=01%7C01%7Ctamar_c%40rad.com%7Cec5663b2638b4c703d0c08d639b1b381%7Cf9047108cc2c4e4897a343fad1b3bf9d%7C1&sdata=rJWIsgFVfK3tOGn%2By%2BySzcO8t96ENNJ3rMtCafHhLt8%3D&reserved=0>
>
>
>
>
>
>
>
