Hi all, My name is Tamar and I have the release 5.0.1 of the FRRouting, it is an excellent IP routing protocol suite! I try to use frr in multicast traffic. 1) Is frr support multicast traffic? (I ask because I tried without success) I write this commands: ip multicast ip pim rp IP ADDR inteface INTERFACE ip pim sm\\ in all interfaces Also I add an ospf: router ospf 1 network 0.0.0.0 0.0.0.0 area 0 my setup include tow PC and one additional router (VM of cisco) [cid:image004.jpg@01D46B90.20365000] This setup does not foreword a multicast traffic unfortunately ... 2) I try to debug the traffic in the frr with the "debug" commands but it does not print to the screen anything. In the manual [cid:image006.jpg@01D46B90.20365000] When I wrote the command I got [cid:image007.png@01D46B8F.489CADB0] Why? 3) Is the frr support pim protocol? It is written in the manual but not work in my setup I would be very grateful if you could help me with this. Thank you! Tamar [cid:image002.jpg@01D26F1D.BF96EE00] Tamar Cohen NFV SW Engineer T: +972-73-270-7625 F: +972-08-6436791 | tamar_c@rad.com<mailto:tamar_c@rad.com> www.rad.com<http://www.rad.com/> | Follow RAD on LinkedIn<http://www.linkedin.com/company/7369/> | Facebook<http://www.facebook.com/pages/RAD-Data-Communications/72479223117> | Twitter<http://twitter.com/raddatacomms> | YouTube<http://www.youtube.com/user/radwebmaster#g/u>
1) PIM-SM works, we are going to need a bit more data, can we get the output of `show ip multicast` and `show ip pim rp-info` as a start? 2) `terminal monitor` is currently only meant for when you telnet into a particular daemon. There is no good way to have asynchronous logging data between all the daemons be sent to the vtysh process for what you are trying to do. I would suggest using a `log file XXX` and in another window tail'ing that file. I have also been known to turn on debugging, watching the log file via a `tail -f XXXX &` and then invoking vtysh to see output as I do work. 3) this is the same question as #1, so yes. donald On Wed, Oct 24, 2018 at 7:34 AM Tamar Cohen <tamar_c@rad.com> wrote:
Hi all,
My name is Tamar and I have the release 5.0.1 of the FRRouting, it is an excellent IP routing protocol suite!
I try to use frr in multicast traffic.
1) Is frr support multicast traffic? (I ask because I tried without success)
I write this commands:
ip multicast
ip pim rp IP ADDR
inteface INTERFACE
ip pim sm\\ in all interfaces
Also I add an ospf:
router ospf 1
network 0.0.0.0 0.0.0.0 area 0
my setup include tow PC and one additional router (VM of cisco)
This setup does not foreword a multicast traffic unfortunately …
2) I try to debug the traffic in the frr with the “debug” commands but it does not print to the screen anything.
In the manual
When I wrote the command I got
Why?
3) Is the frr support pim protocol? It is written in the manual but not work in my setup
I would be very grateful if you could help me with this.
Thank you!
Tamar
[image: cid:image002.jpg@01D26F1D.BF96EE00]
*Tamar Cohen*
NFV SW Engineer
T: +972-73-270-7625
F: +972-08-6436791 | *tamar_c@rad.com <tamar_c@rad.com>*
www.rad.com | Follow RAD on LinkedIn <http://www.linkedin.com/company/7369/> | Facebook <http://www.facebook.com/pages/RAD-Data-Communications/72479223117> | Twitter <http://twitter.com/raddatacomms> | YouTube <http://www.youtube.com/user/radwebmaster#g/u>
_______________________________________________ frog mailing list frog@lists.frrouting.org https://lists.frrouting.org/listinfo/frog
Hi Donald and thank you!!!! Show ip multicast: [cid:image001.png@01D46BAC.425969D0] Show ip pim rp-info [cid:image002.png@01D46BAC.AD5F5500] Show running-config: [cid:image003.png@01D46BAC.AD5F5500] What I miss? Thank you!!!! From: Donald Sharp [mailto:sharpd@cumulusnetworks.com] Sent: Wednesday, October 24, 2018 14:41 To: Tamar Cohen <tamar_c@rad.com> Cc: FRRouting-Dev <dev@lists.frrouting.org>; frog <frog@lists.frrouting.org>; Arik Peretz <arik_p@rad.com> Subject: Re: [FROG] Multicast Protocol 1) PIM-SM works, we are going to need a bit more data, can we get the output of `show ip multicast` and `show ip pim rp-info` as a start? 2) `terminal monitor` is currently only meant for when you telnet into a particular daemon. There is no good way to have asynchronous logging data between all the daemons be sent to the vtysh process for what you are trying to do. I would suggest using a `log file XXX` and in another window tail'ing that file. I have also been known to turn on debugging, watching the log file via a `tail -f XXXX &` and then invoking vtysh to see output as I do work. 3) this is the same question as #1, so yes. donald On Wed, Oct 24, 2018 at 7:34 AM Tamar Cohen <tamar_c@rad.com<mailto:tamar_c@rad.com>> wrote: Hi all, My name is Tamar and I have the release 5.0.1 of the FRRouting, it is an excellent IP routing protocol suite! I try to use frr in multicast traffic. 1) Is frr support multicast traffic? (I ask because I tried without success) I write this commands: ip multicast ip pim rp IP ADDR inteface INTERFACE ip pim sm\\ in all interfaces Also I add an ospf: router ospf 1 network 0.0.0.0 0.0.0.0 area 0 my setup include tow PC and one additional router (VM of cisco) [cid:image004.jpg@01D46B90.20365000] This setup does not foreword a multicast traffic unfortunately … 2) I try to debug the traffic in the frr with the “debug” commands but it does not print to the screen anything. In the manual [cid:image006.jpg@01D46B90.20365000] When I wrote the command I got [cid:image007.png@01D46B8F.489CADB0] Why? 3) Is the frr support pim protocol? It is written in the manual but not work in my setup I would be very grateful if you could help me with this. Thank you! Tamar [cid:image002.jpg@01D26F1D.BF96EE00] Tamar Cohen NFV SW Engineer T: +972-73-270-7625 F: +972-08-6436791 | tamar_c@rad.com<mailto:tamar_c@rad.com> www.rad.com<https://emea01.safelinks.protection.outlook.com/?url=http%3A%2F%2Fwww.rad.com%2F&data=01%7C01%7Ctamar_c%40rad.com%7Cbc0484d0ee33484305f108d639a5a53b%7Cf9047108cc2c4e4897a343fad1b3bf9d%7C1&sdata=njJscG9jqzuRni4%2FSPWbvrHF%2Fk0hKoE10WdCJ1MFnbc%3D&reserved=0> | Follow RAD on LinkedIn<https://emea01.safelinks.protection.outlook.com/?url=http%3A%2F%2Fwww.linkedin.com%2Fcompany%2F7369%2F&data=01%7C01%7Ctamar_c%40rad.com%7Cbc0484d0ee33484305f108d639a5a53b%7Cf9047108cc2c4e4897a343fad1b3bf9d%7C1&sdata=mSVdmmK5264CCTYYJfeFBTv7tmIGh8dS4sf%2BifBVSnM%3D&reserved=0> | Facebook<https://emea01.safelinks.protection.outlook.com/?url=http%3A%2F%2Fwww.facebook.com%2Fpages%2FRAD-Data-Communications%2F72479223117&data=01%7C01%7Ctamar_c%40rad.com%7Cbc0484d0ee33484305f108d639a5a53b%7Cf9047108cc2c4e4897a343fad1b3bf9d%7C1&sdata=VDMp5wCEYCCh1PVITEQYkyKtbjXcwQf9TNjSsIZGwkU%3D&reserved=0> | Twitter<https://emea01.safelinks.protection.outlook.com/?url=http%3A%2F%2Ftwitter.com%2Fraddatacomms&data=01%7C01%7Ctamar_c%40rad.com%7Cbc0484d0ee33484305f108d639a5a53b%7Cf9047108cc2c4e4897a343fad1b3bf9d%7C1&sdata=tRhy%2FCa4p5TUb7CwjMImo%2BaulzOYTa8xHFMqgAwMsuc%3D&reserved=0> | YouTube<https://emea01.safelinks.protection.outlook.com/?url=http%3A%2F%2Fwww.youtube.com%2Fuser%2Fradwebmaster%23g%2Fu&data=01%7C01%7Ctamar_c%40rad.com%7Cbc0484d0ee33484305f108d639a5a53b%7Cf9047108cc2c4e4897a343fad1b3bf9d%7C1&sdata=SRWpR1xkdPk%2BRSfdSzl5j8KJKetMz1X%2F1TjtbqHUtdQ%3D&reserved=0> _______________________________________________ frog mailing list frog@lists.frrouting.org<mailto:frog@lists.frrouting.org> https://lists.frrouting.org/listinfo/frog<https://emea01.safelinks.protection.outlook.com/?url=https%3A%2F%2Flists.frrouting.org%2Flistinfo%2Ffrog&data=01%7C01%7Ctamar_c%40rad.com%7Cbc0484d0ee33484305f108d639a5a53b%7Cf9047108cc2c4e4897a343fad1b3bf9d%7C1&sdata=%2BnTh4X00KQ272l0yhLKyrPeRfA0l4bLw1aFXtJLw8Eo%3D&reserved=0>
The `show ip multicast` command is showing that pim does not think vpp0 or vpp1 have an ip address or an associated VIFI in the linux kernel. I would recommend trying this again: conf t interface vpp0 no ip pim sm ip pim sm ! interface vpp1 no ip igmp join 224.1.1.1 3.3.3.4 no ip pim sm ip pim sm ip igmp join 224.1.1.1 3.3.3.4 ! Then let's re-issue a `show ip multicast` and see if those interfaces are now configured under pim. If not we can discuss debugging. I would also recommend joining the FRRouting slack for a real-time debugging ability. donald On Wed, Oct 24, 2018 at 8:17 AM Tamar Cohen <tamar_c@rad.com> wrote:
Hi Donald and thank you!!!!

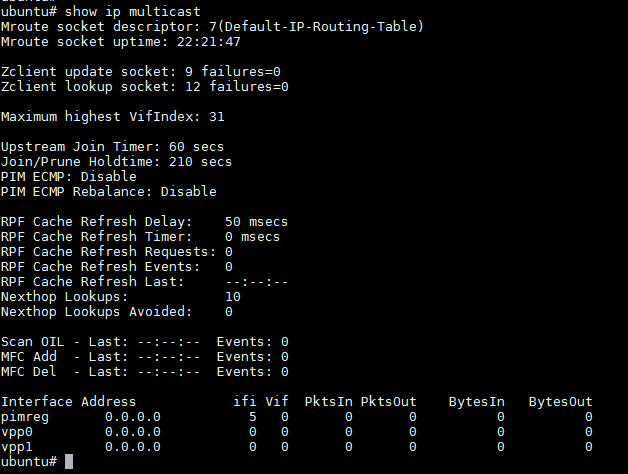

Show ip multicast:
Show ip pim rp-info

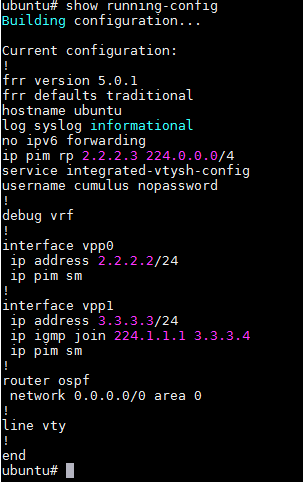

Show running-config:
What I miss?
Thank you!!!!
*From:* Donald Sharp [mailto:sharpd@cumulusnetworks.com] *Sent:* Wednesday, October 24, 2018 14:41 *To:* Tamar Cohen <tamar_c@rad.com> *Cc:* FRRouting-Dev <dev@lists.frrouting.org>; frog < frog@lists.frrouting.org>; Arik Peretz <arik_p@rad.com> *Subject:* Re: [FROG] Multicast Protocol
1) PIM-SM works, we are going to need a bit more data, can we get the output of `show ip multicast` and `show ip pim rp-info` as a start?
2) `terminal monitor` is currently only meant for when you telnet into a particular daemon. There is no good way to have asynchronous logging data between all the daemons be sent to the vtysh process for what you are trying to do. I would suggest using a `log file XXX` and in another window tail'ing that file. I have also been known to turn on debugging, watching the log file via a `tail -f XXXX &` and then invoking vtysh to see output as I do work.
3) this is the same question as #1, so yes.
donald
On Wed, Oct 24, 2018 at 7:34 AM Tamar Cohen <tamar_c@rad.com> wrote:
Hi all,
My name is Tamar and I have the release 5.0.1 of the FRRouting, it is an excellent IP routing protocol suite!
I try to use frr in multicast traffic.
1) Is frr support multicast traffic? (I ask because I tried without success)
I write this commands:
ip multicast
ip pim rp IP ADDR
inteface INTERFACE
ip pim sm\\ in all interfaces
Also I add an ospf:
router ospf 1
network 0.0.0.0 0.0.0.0 area 0
my setup include tow PC and one additional router (VM of cisco)
This setup does not foreword a multicast traffic unfortunately …
2) I try to debug the traffic in the frr with the “debug” commands but it does not print to the screen anything.
In the manual
When I wrote the command I got
Why?
3) Is the frr support pim protocol? It is written in the manual but not work in my setup
I would be very grateful if you could help me with this.
Thank you!
Tamar
[image: cid:image002.jpg@01D26F1D.BF96EE00]
*Tamar Cohen*
NFV SW Engineer
T: +972-73-270-7625
F: +972-08-6436791 | *tamar_c@rad.com <tamar_c@rad.com>*
www.rad.com <https://emea01.safelinks.protection.outlook.com/?url=http%3A%2F%2Fwww.rad.com%2F&data=01%7C01%7Ctamar_c%40rad.com%7Cbc0484d0ee33484305f108d639a5a53b%7Cf9047108cc2c4e4897a343fad1b3bf9d%7C1&sdata=njJscG9jqzuRni4%2FSPWbvrHF%2Fk0hKoE10WdCJ1MFnbc%3D&reserved=0> | Follow RAD on LinkedIn <https://emea01.safelinks.protection.outlook.com/?url=http%3A%2F%2Fwww.linkedin.com%2Fcompany%2F7369%2F&data=01%7C01%7Ctamar_c%40rad.com%7Cbc0484d0ee33484305f108d639a5a53b%7Cf9047108cc2c4e4897a343fad1b3bf9d%7C1&sdata=mSVdmmK5264CCTYYJfeFBTv7tmIGh8dS4sf%2BifBVSnM%3D&reserved=0> | Facebook <https://emea01.safelinks.protection.outlook.com/?url=http%3A%2F%2Fwww.facebook.com%2Fpages%2FRAD-Data-Communications%2F72479223117&data=01%7C01%7Ctamar_c%40rad.com%7Cbc0484d0ee33484305f108d639a5a53b%7Cf9047108cc2c4e4897a343fad1b3bf9d%7C1&sdata=VDMp5wCEYCCh1PVITEQYkyKtbjXcwQf9TNjSsIZGwkU%3D&reserved=0> | Twitter <https://emea01.safelinks.protection.outlook.com/?url=http%3A%2F%2Ftwitter.com%2Fraddatacomms&data=01%7C01%7Ctamar_c%40rad.com%7Cbc0484d0ee33484305f108d639a5a53b%7Cf9047108cc2c4e4897a343fad1b3bf9d%7C1&sdata=tRhy%2FCa4p5TUb7CwjMImo%2BaulzOYTa8xHFMqgAwMsuc%3D&reserved=0> | YouTube <https://emea01.safelinks.protection.outlook.com/?url=http%3A%2F%2Fwww.youtube.com%2Fuser%2Fradwebmaster%23g%2Fu&data=01%7C01%7Ctamar_c%40rad.com%7Cbc0484d0ee33484305f108d639a5a53b%7Cf9047108cc2c4e4897a343fad1b3bf9d%7C1&sdata=SRWpR1xkdPk%2BRSfdSzl5j8KJKetMz1X%2F1TjtbqHUtdQ%3D&reserved=0>
_______________________________________________ frog mailing list frog@lists.frrouting.org https://lists.frrouting.org/listinfo/frog <https://emea01.safelinks.protection.outlook.com/?url=https%3A%2F%2Flists.frrouting.org%2Flistinfo%2Ffrog&data=01%7C01%7Ctamar_c%40rad.com%7Cbc0484d0ee33484305f108d639a5a53b%7Cf9047108cc2c4e4897a343fad1b3bf9d%7C1&sdata=%2BnTh4X00KQ272l0yhLKyrPeRfA0l4bLw1aFXtJLw8Eo%3D&reserved=0>
Hi Donald and thank you so match!! Unfortunately it is not help me Here is the screenshot: [cid:image001.png@01D46C48.E10BF790] And after that the show ip multicast: [cid:image002.png@01D46C48.E10BF790] Who do I joining the FRRouting slack? Thank you! Tamar From: Donald Sharp [mailto:sharpd@cumulusnetworks.com] Sent: Wednesday, October 24, 2018 16:08 To: Tamar Cohen <tamar_c@rad.com> Cc: FRRouting-Dev <dev@lists.frrouting.org>; frog <frog@lists.frrouting.org>; Arik Peretz <arik_p@rad.com> Subject: Re: [FROG] Multicast Protocol The `show ip multicast` command is showing that pim does not think vpp0 or vpp1 have an ip address or an associated VIFI in the linux kernel. I would recommend trying this again: conf t interface vpp0 no ip pim sm ip pim sm ! interface vpp1 no ip igmp join 224.1.1.1 3.3.3.4 no ip pim sm ip pim sm ip igmp join 224.1.1.1 3.3.3.4 ! Then let's re-issue a `show ip multicast` and see if those interfaces are now configured under pim. If not we can discuss debugging. I would also recommend joining the FRRouting slack for a real-time debugging ability. donald On Wed, Oct 24, 2018 at 8:17 AM Tamar Cohen <tamar_c@rad.com<mailto:tamar_c@rad.com>> wrote: Hi Donald and thank you!!!! Show ip multicast: [cid:image001.png@01D46BAC.425969D0] Show ip pim rp-info [cid:image002.png@01D46BAC.AD5F5500] Show running-config: [cid:image003.png@01D46BAC.AD5F5500] What I miss? Thank you!!!! From: Donald Sharp [mailto:sharpd@cumulusnetworks.com<mailto:sharpd@cumulusnetworks.com>] Sent: Wednesday, October 24, 2018 14:41 To: Tamar Cohen <tamar_c@rad.com<mailto:tamar_c@rad.com>> Cc: FRRouting-Dev <dev@lists.frrouting.org<mailto:dev@lists.frrouting.org>>; frog <frog@lists.frrouting.org<mailto:frog@lists.frrouting.org>>; Arik Peretz <arik_p@rad.com<mailto:arik_p@rad.com>> Subject: Re: [FROG] Multicast Protocol 1) PIM-SM works, we are going to need a bit more data, can we get the output of `show ip multicast` and `show ip pim rp-info` as a start? 2) `terminal monitor` is currently only meant for when you telnet into a particular daemon. There is no good way to have asynchronous logging data between all the daemons be sent to the vtysh process for what you are trying to do. I would suggest using a `log file XXX` and in another window tail'ing that file. I have also been known to turn on debugging, watching the log file via a `tail -f XXXX &` and then invoking vtysh to see output as I do work. 3) this is the same question as #1, so yes. donald On Wed, Oct 24, 2018 at 7:34 AM Tamar Cohen <tamar_c@rad.com<mailto:tamar_c@rad.com>> wrote: Hi all, My name is Tamar and I have the release 5.0.1 of the FRRouting, it is an excellent IP routing protocol suite! I try to use frr in multicast traffic. 1) Is frr support multicast traffic? (I ask because I tried without success) I write this commands: ip multicast ip pim rp IP ADDR inteface INTERFACE ip pim sm\\ in all interfaces Also I add an ospf: router ospf 1 network 0.0.0.0 0.0.0.0 area 0 my setup include tow PC and one additional router (VM of cisco) This setup does not foreword a multicast traffic unfortunately … 2) I try to debug the traffic in the frr with the “debug” commands but it does not print to the screen anything. In the manual When I wrote the command I got Why? 3) Is the frr support pim protocol? It is written in the manual but not work in my setup I would be very grateful if you could help me with this. Thank you! Tamar Tamar Cohen NFV SW Engineer T: +972-73-270-7625 F: +972-08-6436791 | tamar_c@rad.com<mailto:tamar_c@rad.com> www.rad.com<https://emea01.safelinks.protection.outlook.com/?url=http%3A%2F%2Fwww.rad.com%2F&data=01%7C01%7Ctamar_c%40rad.com%7Cec5663b2638b4c703d0c08d639b1b381%7Cf9047108cc2c4e4897a343fad1b3bf9d%7C1&sdata=ypPv6L7oeyJYXMOtg1FZ06MxJQHmuAcWP8u2%2BVWvHgs%3D&reserved=0> | Follow RAD on LinkedIn<https://emea01.safelinks.protection.outlook.com/?url=http%3A%2F%2Fwww.linkedin.com%2Fcompany%2F7369%2F&data=01%7C01%7Ctamar_c%40rad.com%7Cec5663b2638b4c703d0c08d639b1b381%7Cf9047108cc2c4e4897a343fad1b3bf9d%7C1&sdata=nJOVUet9%2FtGnaOThM5v%2FlBYf7oc8HzD1XrMD10FOi3k%3D&reserved=0> | Facebook<https://emea01.safelinks.protection.outlook.com/?url=http%3A%2F%2Fwww.facebook.com%2Fpages%2FRAD-Data-Communications%2F72479223117&data=01%7C01%7Ctamar_c%40rad.com%7Cec5663b2638b4c703d0c08d639b1b381%7Cf9047108cc2c4e4897a343fad1b3bf9d%7C1&sdata=SFcMKxivdpSgP0qc9xEhCxbsd%2FcZdGMEwTiXml67n3E%3D&reserved=0> | Twitter<https://emea01.safelinks.protection.outlook.com/?url=http%3A%2F%2Ftwitter.com%2Fraddatacomms&data=01%7C01%7Ctamar_c%40rad.com%7Cec5663b2638b4c703d0c08d639b1b381%7Cf9047108cc2c4e4897a343fad1b3bf9d%7C1&sdata=80r2Ko6fCuPCZP5r%2FHcOr1Opl%2FvMBNWvfRrtGsaAN1I%3D&reserved=0> | YouTube<https://emea01.safelinks.protection.outlook.com/?url=http%3A%2F%2Fwww.youtube.com%2Fuser%2Fradwebmaster%23g%2Fu&data=01%7C01%7Ctamar_c%40rad.com%7Cec5663b2638b4c703d0c08d639b1b381%7Cf9047108cc2c4e4897a343fad1b3bf9d%7C1&sdata=rJWIsgFVfK3tOGn%2By%2BySzcO8t96ENNJ3rMtCafHhLt8%3D&reserved=0> _______________________________________________ frog mailing list frog@lists.frrouting.org<mailto:frog@lists.frrouting.org> https://lists.frrouting.org/listinfo/frog<https://emea01.safelinks.protection.outlook.com/?url=https%3A%2F%2Flists.frrouting.org%2Flistinfo%2Ffrog&data=01%7C01%7Ctamar_c%40rad.com%7Cec5663b2638b4c703d0c08d639b1b381%7Cf9047108cc2c4e4897a343fad1b3bf9d%7C1&sdata=1eABYx6yEos%2BoqL%2Bh8E5NeZjOC4h6n48jU%2FeZk6CpyM%3D&reserved=0>
Are the interfaces up? `show interface`? No ip address sure implies that they are not up. donald On Thu, Oct 25, 2018 at 2:55 AM Tamar Cohen <tamar_c@rad.com> wrote:
Hi Donald and thank you so match!!
Unfortunately it is not help me

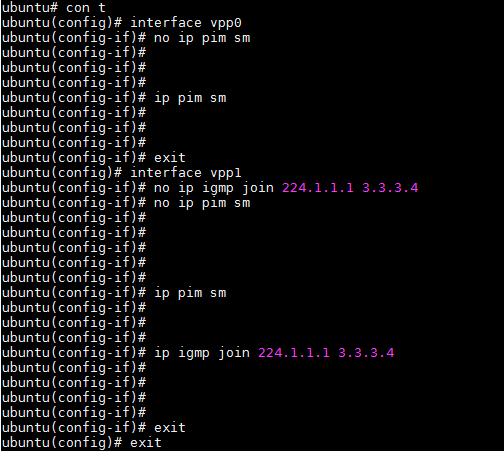

Here is the screenshot:

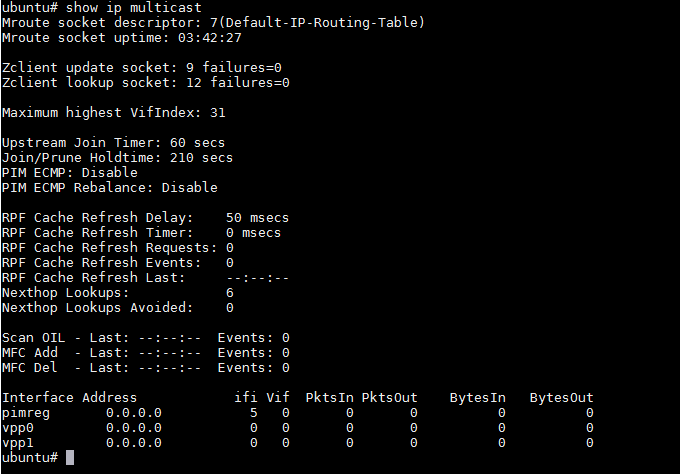

And after that the show ip multicast:
Who do I joining the FRRouting slack?
Thank you!
Tamar
*From:* Donald Sharp [mailto:sharpd@cumulusnetworks.com] *Sent:* Wednesday, October 24, 2018 16:08 *To:* Tamar Cohen <tamar_c@rad.com> *Cc:* FRRouting-Dev <dev@lists.frrouting.org>; frog < frog@lists.frrouting.org>; Arik Peretz <arik_p@rad.com> *Subject:* Re: [FROG] Multicast Protocol
The `show ip multicast` command is showing that pim does not think vpp0 or vpp1 have an ip address or an associated VIFI in the linux kernel. I would recommend trying this again:
conf t
interface vpp0
no ip pim sm
ip pim sm
!
interface vpp1
no ip igmp join 224.1.1.1 3.3.3.4
no ip pim sm
ip pim sm
ip igmp join 224.1.1.1 3.3.3.4
!
Then let's re-issue a `show ip multicast` and see if those interfaces are now configured under pim. If not we can discuss debugging.
I would also recommend joining the FRRouting slack for a real-time debugging ability.
donald
On Wed, Oct 24, 2018 at 8:17 AM Tamar Cohen <tamar_c@rad.com> wrote:
Hi Donald and thank you!!!!
Show ip multicast:
Show ip pim rp-info
Show running-config:
What I miss?
Thank you!!!!
*From:* Donald Sharp [mailto:sharpd@cumulusnetworks.com] *Sent:* Wednesday, October 24, 2018 14:41 *To:* Tamar Cohen <tamar_c@rad.com> *Cc:* FRRouting-Dev <dev@lists.frrouting.org>; frog < frog@lists.frrouting.org>; Arik Peretz <arik_p@rad.com> *Subject:* Re: [FROG] Multicast Protocol
1) PIM-SM works, we are going to need a bit more data, can we get the output of `show ip multicast` and `show ip pim rp-info` as a start?
2) `terminal monitor` is currently only meant for when you telnet into a particular daemon. There is no good way to have asynchronous logging data between all the daemons be sent to the vtysh process for what you are trying to do. I would suggest using a `log file XXX` and in another window tail'ing that file. I have also been known to turn on debugging, watching the log file via a `tail -f XXXX &` and then invoking vtysh to see output as I do work.
3) this is the same question as #1, so yes.
donald
On Wed, Oct 24, 2018 at 7:34 AM Tamar Cohen <tamar_c@rad.com> wrote:
Hi all,
My name is Tamar and I have the release 5.0.1 of the FRRouting, it is an excellent IP routing protocol suite!
I try to use frr in multicast traffic.
1) Is frr support multicast traffic? (I ask because I tried without success)
I write this commands:
ip multicast
ip pim rp IP ADDR
inteface INTERFACE
ip pim sm\\ in all interfaces
Also I add an ospf:
router ospf 1
network 0.0.0.0 0.0.0.0 area 0
my setup include tow PC and one additional router (VM of cisco)
This setup does not foreword a multicast traffic unfortunately …
2) I try to debug the traffic in the frr with the “debug” commands but it does not print to the screen anything.
In the manual
When I wrote the command I got
Why?
3) Is the frr support pim protocol? It is written in the manual but not work in my setup
I would be very grateful if you could help me with this.
Thank you!
Tamar
*Tamar Cohen*
NFV SW Engineer
T: +972-73-270-7625
F: +972-08-6436791 | *tamar_c@rad.com <tamar_c@rad.com>*
www.rad.com <https://emea01.safelinks.protection.outlook.com/?url=http%3A%2F%2Fwww.rad.com%2F&data=01%7C01%7Ctamar_c%40rad.com%7Cec5663b2638b4c703d0c08d639b1b381%7Cf9047108cc2c4e4897a343fad1b3bf9d%7C1&sdata=ypPv6L7oeyJYXMOtg1FZ06MxJQHmuAcWP8u2%2BVWvHgs%3D&reserved=0> | Follow RAD on LinkedIn <https://emea01.safelinks.protection.outlook.com/?url=http%3A%2F%2Fwww.linkedin.com%2Fcompany%2F7369%2F&data=01%7C01%7Ctamar_c%40rad.com%7Cec5663b2638b4c703d0c08d639b1b381%7Cf9047108cc2c4e4897a343fad1b3bf9d%7C1&sdata=nJOVUet9%2FtGnaOThM5v%2FlBYf7oc8HzD1XrMD10FOi3k%3D&reserved=0> | Facebook <https://emea01.safelinks.protection.outlook.com/?url=http%3A%2F%2Fwww.facebook.com%2Fpages%2FRAD-Data-Communications%2F72479223117&data=01%7C01%7Ctamar_c%40rad.com%7Cec5663b2638b4c703d0c08d639b1b381%7Cf9047108cc2c4e4897a343fad1b3bf9d%7C1&sdata=SFcMKxivdpSgP0qc9xEhCxbsd%2FcZdGMEwTiXml67n3E%3D&reserved=0> | Twitter <https://emea01.safelinks.protection.outlook.com/?url=http%3A%2F%2Ftwitter.com%2Fraddatacomms&data=01%7C01%7Ctamar_c%40rad.com%7Cec5663b2638b4c703d0c08d639b1b381%7Cf9047108cc2c4e4897a343fad1b3bf9d%7C1&sdata=80r2Ko6fCuPCZP5r%2FHcOr1Opl%2FvMBNWvfRrtGsaAN1I%3D&reserved=0> | YouTube <https://emea01.safelinks.protection.outlook.com/?url=http%3A%2F%2Fwww.youtube.com%2Fuser%2Fradwebmaster%23g%2Fu&data=01%7C01%7Ctamar_c%40rad.com%7Cec5663b2638b4c703d0c08d639b1b381%7Cf9047108cc2c4e4897a343fad1b3bf9d%7C1&sdata=rJWIsgFVfK3tOGn%2By%2BySzcO8t96ENNJ3rMtCafHhLt8%3D&reserved=0>
_______________________________________________ frog mailing list frog@lists.frrouting.org https://lists.frrouting.org/listinfo/frog <https://emea01.safelinks.protection.outlook.com/?url=https%3A%2F%2Flists.frrouting.org%2Flistinfo%2Ffrog&data=01%7C01%7Ctamar_c%40rad.com%7Cec5663b2638b4c703d0c08d639b1b381%7Cf9047108cc2c4e4897a343fad1b3bf9d%7C1&sdata=1eABYx6yEos%2BoqL%2Bh8E5NeZjOC4h6n48jU%2FeZk6CpyM%3D&reserved=0>
